1. The Chart of Process Flow
decoiling--active feeding--roll forming--measuring length--cutting to length--product to stand

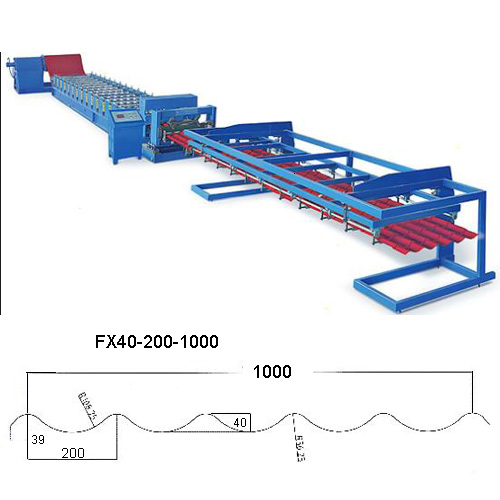

2. Introduction of Equipment
decoiler, main forming machine,hydraulic pressing, hydraulic cutting, product stand, hydraulic system, electric system.

3. Technical Specifications

1) manual inner tight decoiler
a. coil inner diameter: 450mm-700mm
b. maximum width of coiling: 1200mm
c. maximum weight of loading: 6000kg

2) main forming machine
a. number of forming steps: 9
b. material of shaft: 45# steel adjustable treatment.
  outer diameter: 70mm
c. material of roller: high grade 45# steel(plated chrome on surface)
d. main motor power: 3kw
e. forming speed: 2-6m/min
f. stand: 350# steel welding
g. the plating chromium of roller surface: 0.05mm


Products Warranty: 12 month, and we will provide the technical support for the whole life of the equipment
